Opis

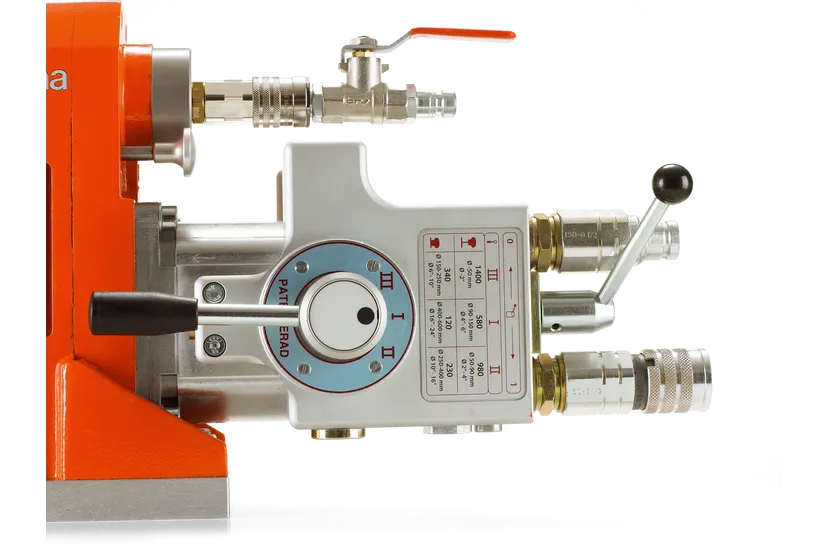

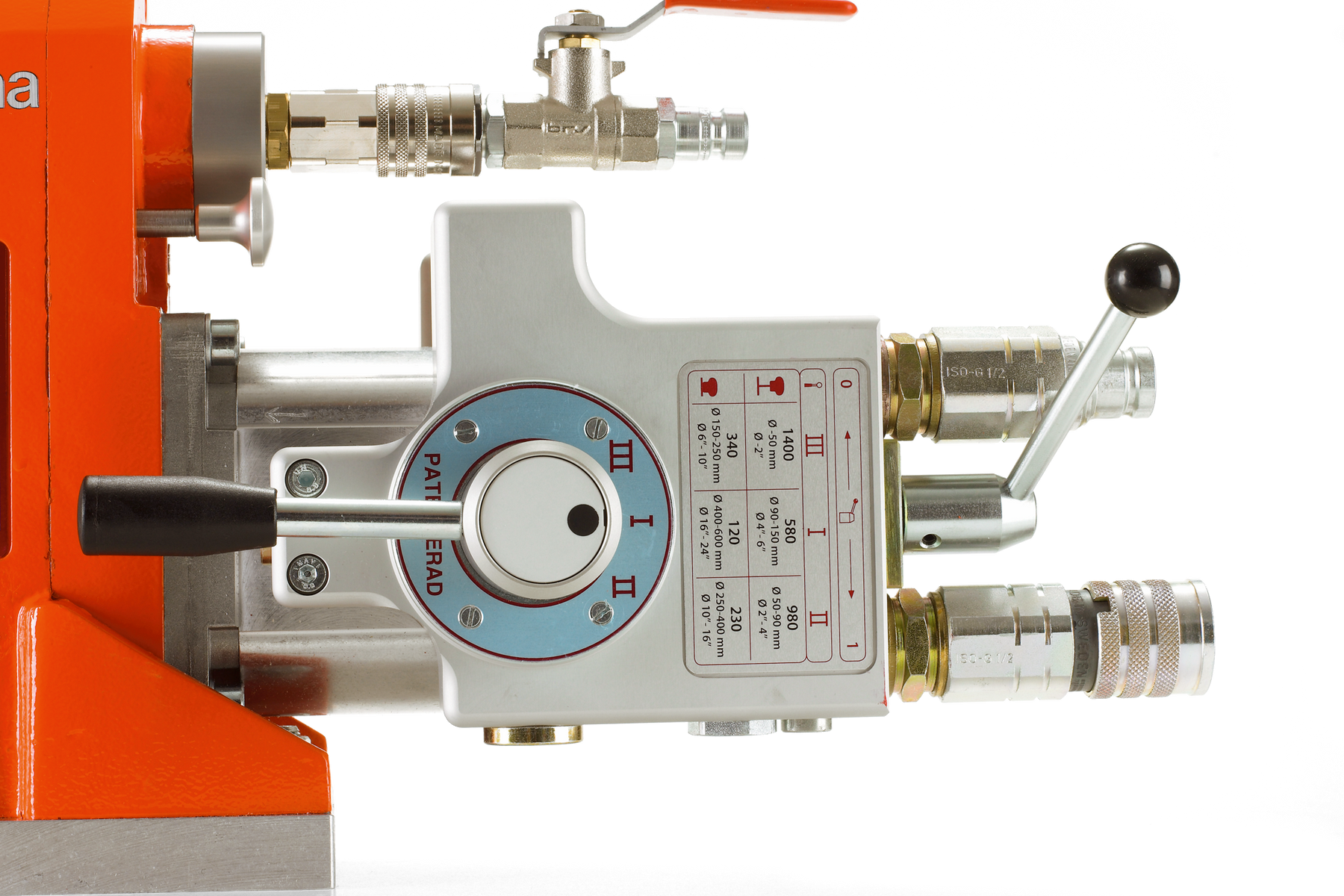

Regulacija hitrosti med vrtanjem
Šest različnih hitrosti vretena za optimalno zmogljivost vrtanja.

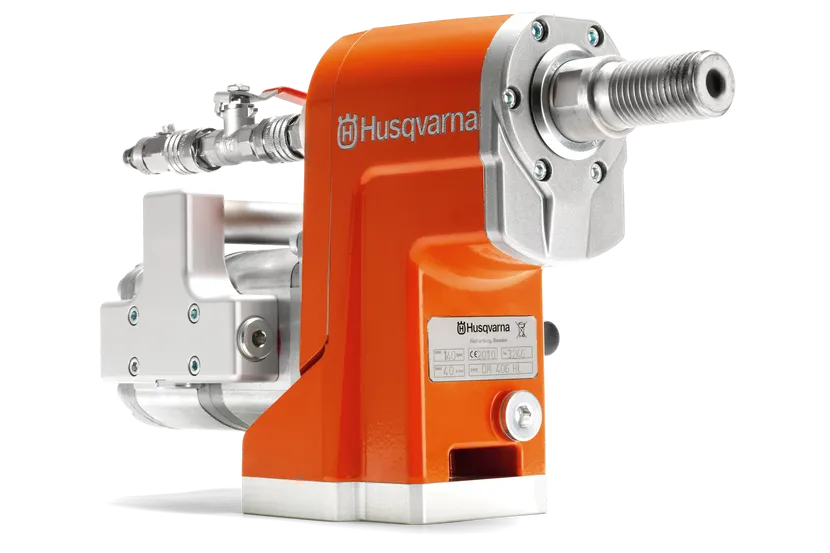

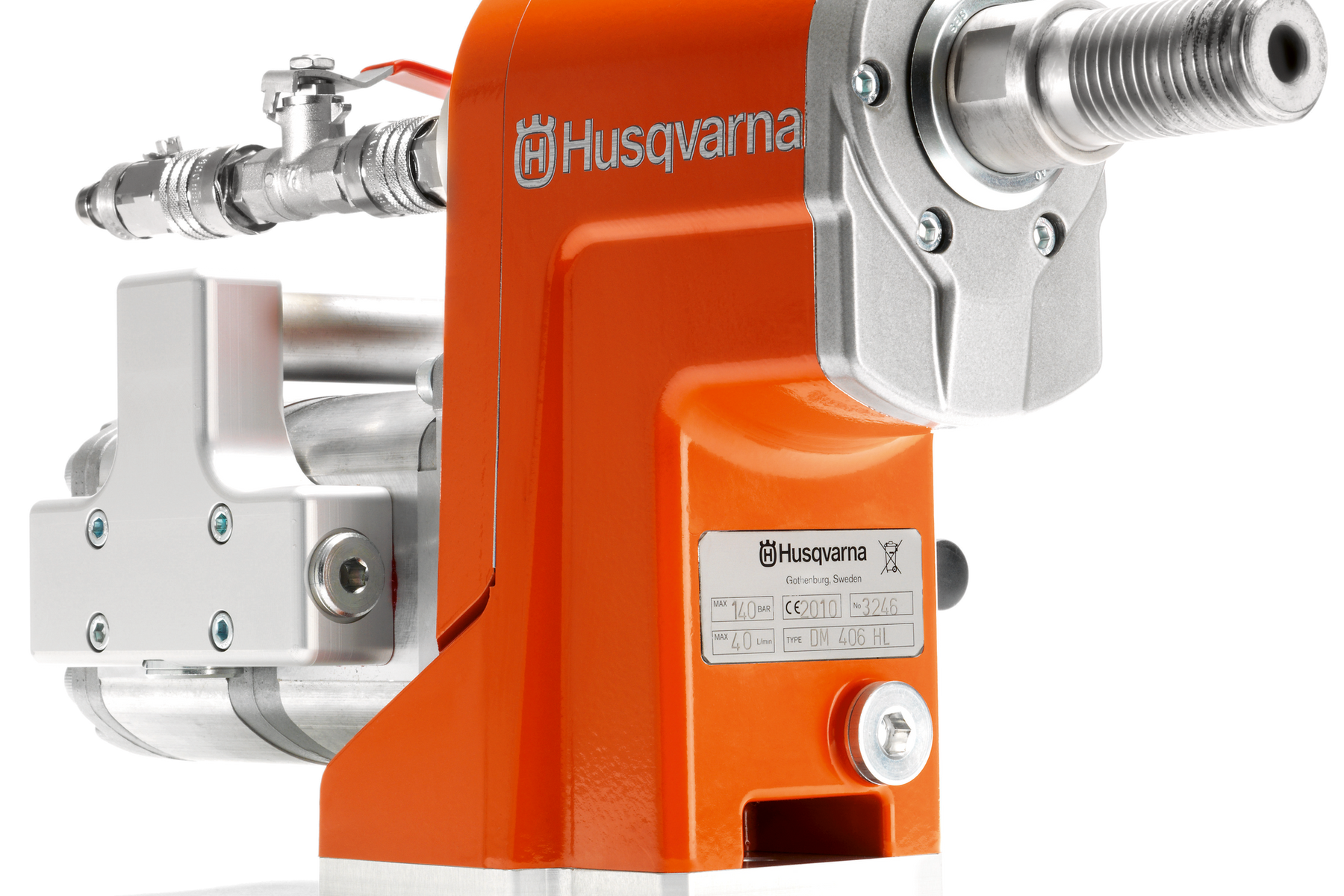

Optimalna hitrost za vsako uporabo
Šeststopenjski menjalnik zagotavlja širok razpon rpm za vse aplikacije.
Dodatni opis
- Šest različnih hitrosti vretena za optimalno zmogljivost vrtanja.
- 6-stopenjski menjalnik s širokim razponom hitrosti za široko paleto aplikacij.
* Pridržujemo si pravico do napak na spletni strani tako v slikovnem kot tekstovnem delu in zanje ne prevzemamo odgovornosti.
Lastnosti
| Moč motorja | 9,3 kW |
| Teža | 16 kg |
| Tip motorja | hidravličen |
| Premer vrtanja | 650 mm |
| Priklop | R 1/2" |
| Zunanji navoj | 1 1/4" 7 UNC/CR 128 |
| Brand | Husqvarna |
| CE certified | No |
| Coolant | Wet |

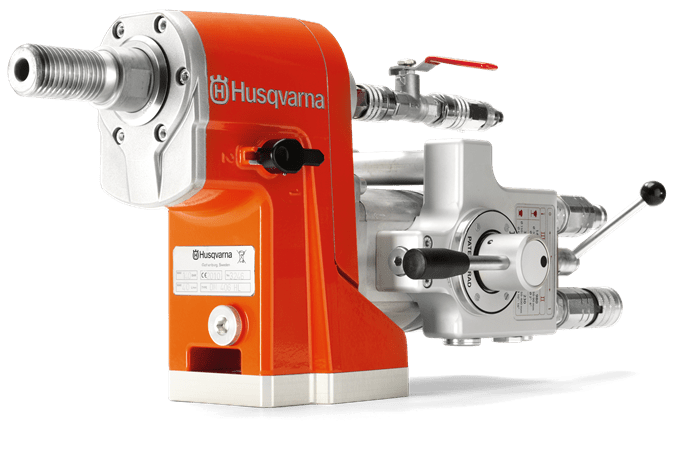

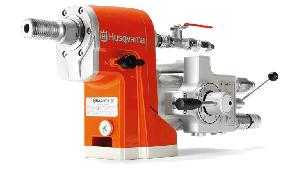

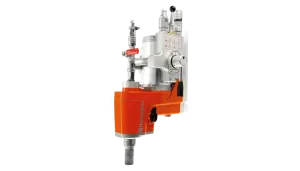

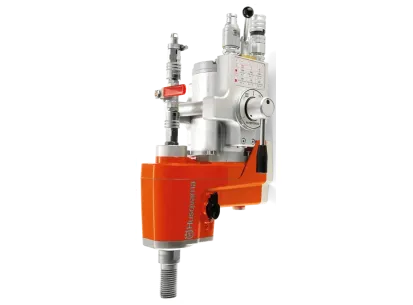

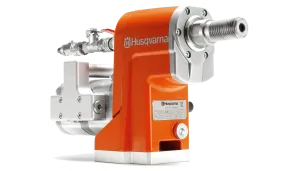

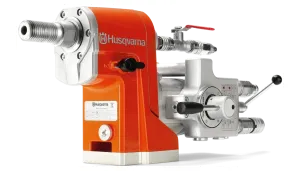

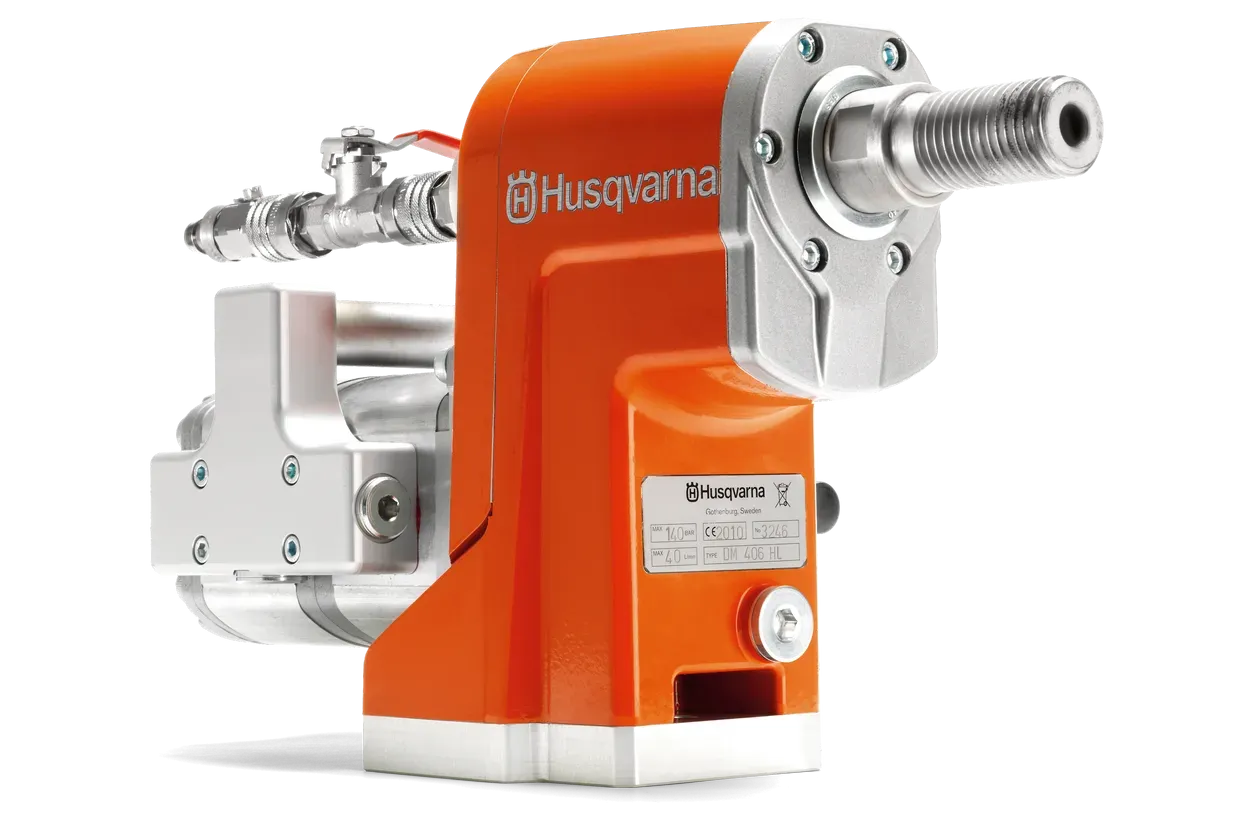

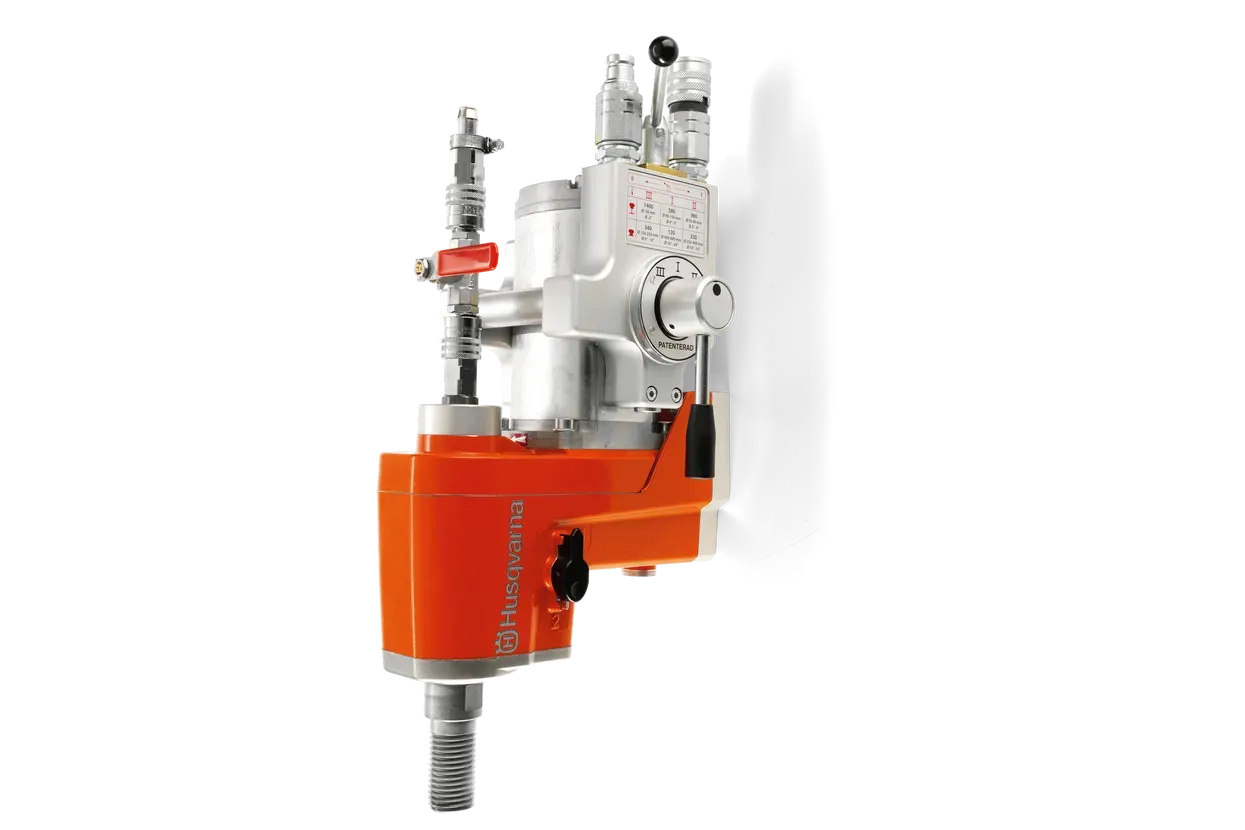

| Descriptive Name | DM 406HL |
| Engine Power (As rated by the engine manufacturer) | 9.3 kW |
| Hydraulic oil flow | 37.85 l/min |
| Hydraulic pressure, max | 140 bar |
| Number of gearbox speeds | 2 |
| Oil capacity | 0.3 l |
| Output shaft RPM, max | 1400 rpm |
| Power source | Hydraulic |
| Product size height | 520 mm |
| Product size length | 260 mm |
| Product size width | 210 mm |
| Recommended drill bit diameter, min | 50 mm |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Sound power level, measured | 112 dB(A) |
| Sound pressure level at operators ear | 98 dB(A) |
| Spindle speed unloaded gear 1 | 340 rpm |
| Spindle speed unloaded gear 2 | 1400 rpm |
| Spindle thread, outer | 1 1/4" 7 UNC |
| Unit | Piece / Each |
| Water connector | R 1 / 2" |
| Water pressure, max | 8 bar |
